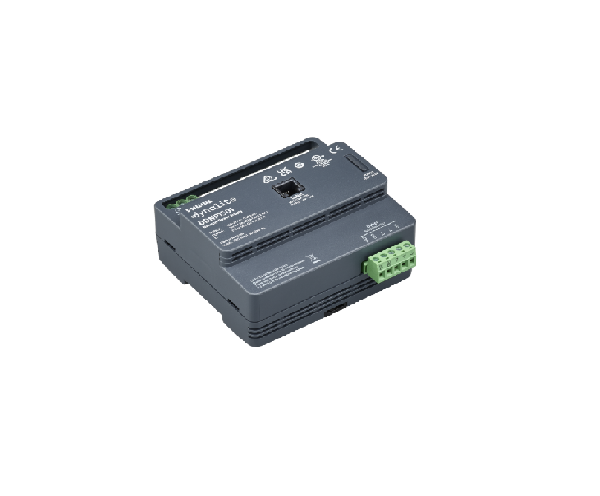

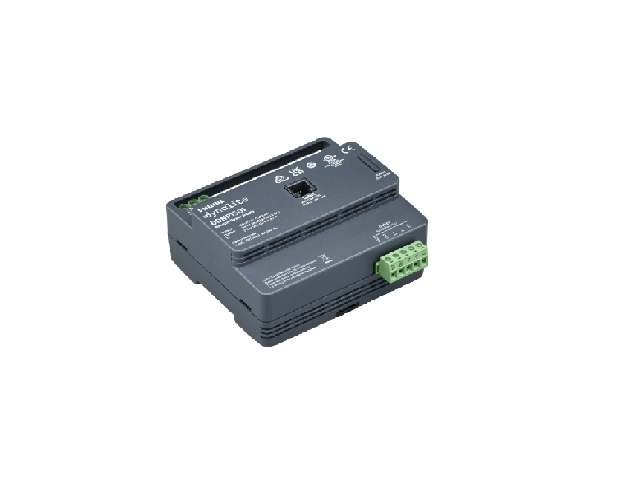

The Philips Dynalite DDNP1501 is a 15 VDC 1.5 A regulated power supply
that supplements the DyNet network DC supply and provides a convenient
RJ12 port for commissioning the Dynalite system.
• No manual selection required – The switch-mode design
allows the device to be used with a range of input voltages.
• Flexible mounting solution – A DIN-rail mountable device,
with a circuit breaker profile designed to be installed
into all types of distribution board enclosures, including
those with cover apertures specifically designed for circuit
breakers.
• Used when high-consumption devices are
employed – The DyNet network is self-powered via
built-in DC supplies integrated within all mains-powered
devices. Use of high-consumption devices, such as edge-lit
touchscreens, can necessitate a requirement for additional
power.
• Front-facing RJ12 port – Provides a convenient connection
point to the DyNet RS-485 bus for commissioning engineers
using a laptop and PC node.
