Mô tả sản phẩm

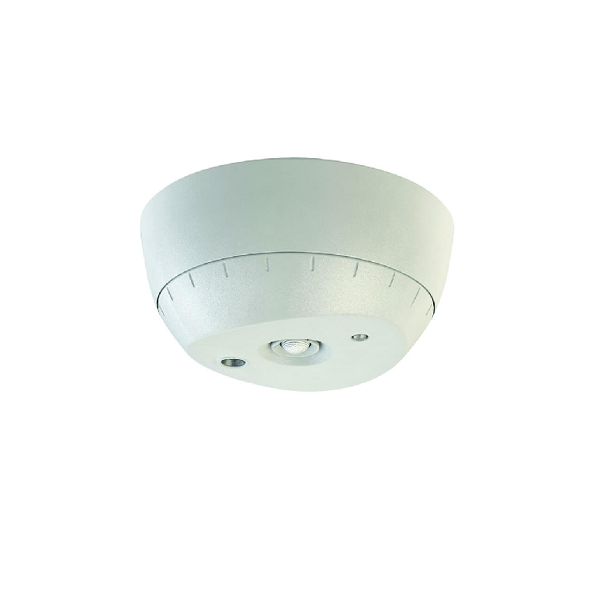

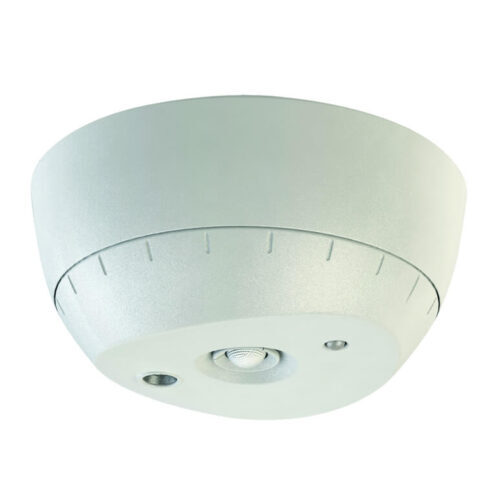

The Philips Dynalite DUS360CS is a surface mountable 360 degree multifunction sensor that combines motion detection (PIR), infrared remote control reception (IR) and ambient light level detection (PE) into one device in applications such as hotels, restaurants and homes
- Motion detection feature – Detects the presence or absence of motion and adjusts lights accordingly.
- Segmented click-up bezel – Surrounds the motion sensor element and enables a portion of the sensing field to be masked. This prevents nuisance detection from adjacent doorways or corridors.
- Ambient light level regulation – In applications where it is critical to maintain precise light levels, the PE function reads ambient levels and adjusts artificial light accordingly.
- Infrared receive capability – Manually adjust light levels using a hand-held remote control, via the inbuilt IR receive sensor of the DUS360CS.
- Daylight harvesting mode – Delivers automatic energy savings.
- Suitable for plenum use – UL approved for installation in air-handling plenum spaces
| Mô tả | • Cảm biến đa chức năng gắn nổi |
| Thông số kỹ thuật | • Cấp nguồn: Dynet (cáp CAT5E) • Loại cảm biến PIR: Quad element pyroelectric • Chiều cao lắp đặt: 2.1~4m • Vùng quét: max 5 m (16.4 ft)* • Cảm biến ánh sáng: 5-5000 lux • Cấp bảo vệ: IP20 • Kích thước (HxW): 41 x 72 mm (1.61 x 2.83 in) |
| Kết nối | • Cổng ra: 1 x 5-way screw terminal +V, D-, D+, GND, SHLD • Kích thước dây dẫn: 2.5 mm2 (#12 AWG) (max) |
| Điều khiển | • Lập trình chức năng |
* Typical detection range at ≤ 25°C (77°F). Range is reduced at higher temperatures.
