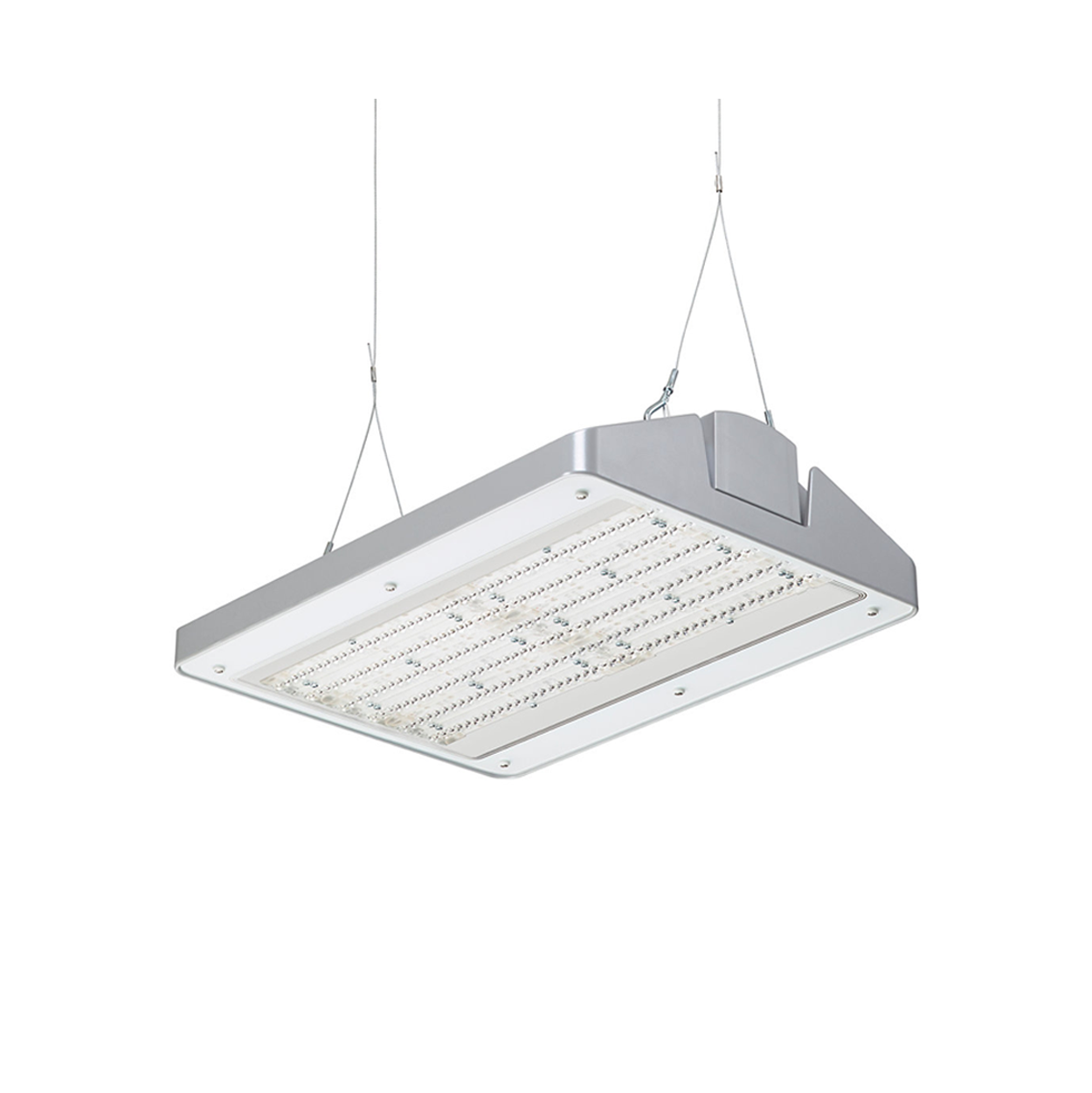

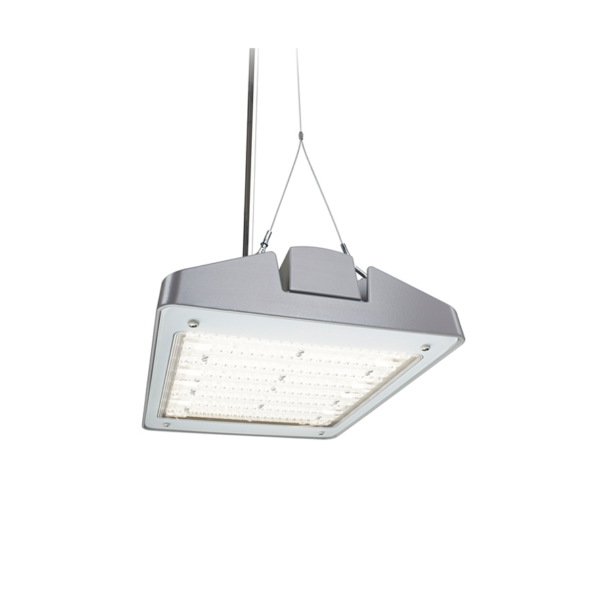

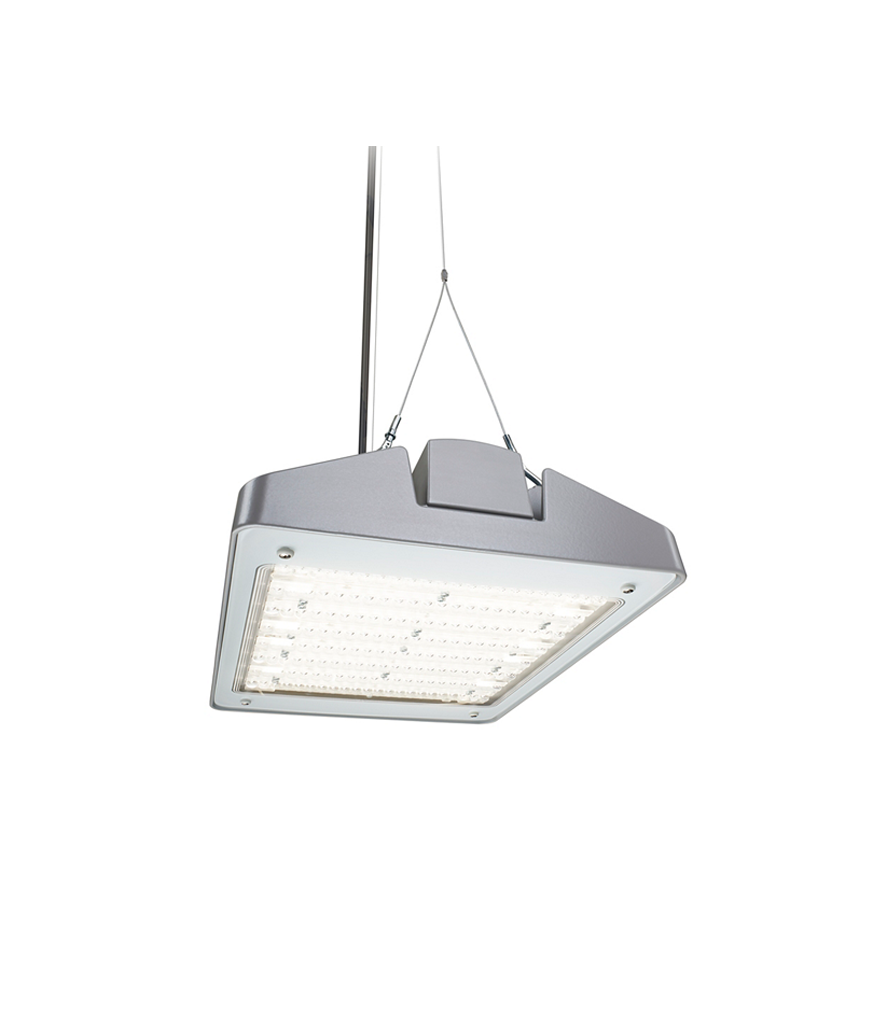

BY470P/BY471P – Philips – GentleSpace gen2

With the introduction of the GentleSpace LED luminaire in 2011, Philips achieved a
breakthrough in high-bay lighting, offering a huge reduction in power consumption,
a long service life and an innovative design.



Danh mục:

Mô tả sản phẩm

Mô tả • Đèn chống cháy nổ
Công suất • BY470P: 95 W
• BY471P: 126 and 180 W
Thông số kỹ thuật • Điện áp:- 220-240 V AC / 50-60 Hz
-186-250 V DC
• Hệ thống Lumen:
– GRN versions: 13,000, 17,000 and 25,000 lm
– ECO versions: 13,000, 17,000, 25,000 and 32,000 lm
– XT versions: 17,000 and 25,000 lm
• CRI>80, SDCM<3
• IP65/IK07 /Class I
• Nhiệt độ hoạt động -30 to +45 °C
• Góc chiếu :
– Narrow beam (NB)
– Medium beam (MB)
– Wide beam (WB)
– High-rack (HRO)
– Asymmetrical mirror axis angle 50° (A50)
Điều khiển • DALI
Nhiệt độ màu • NW (4000K)

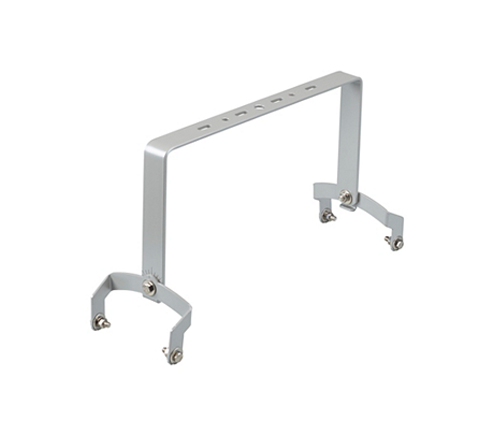

Phụ kiện • Mounting brackets (BY470Z, BY471Z)

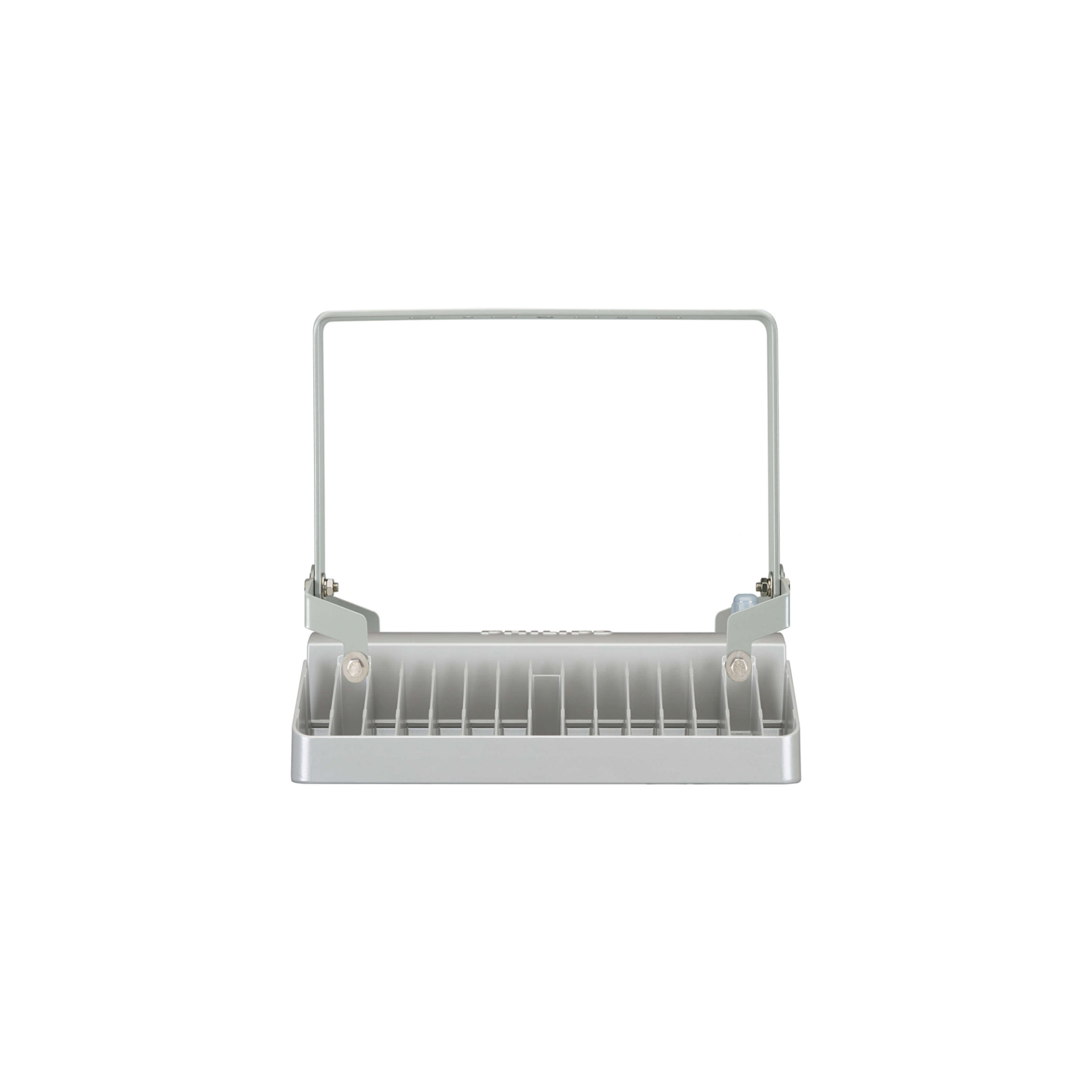

Wall mounting bracket





GentleSpace gen2 BY47X
