Sản phẩm

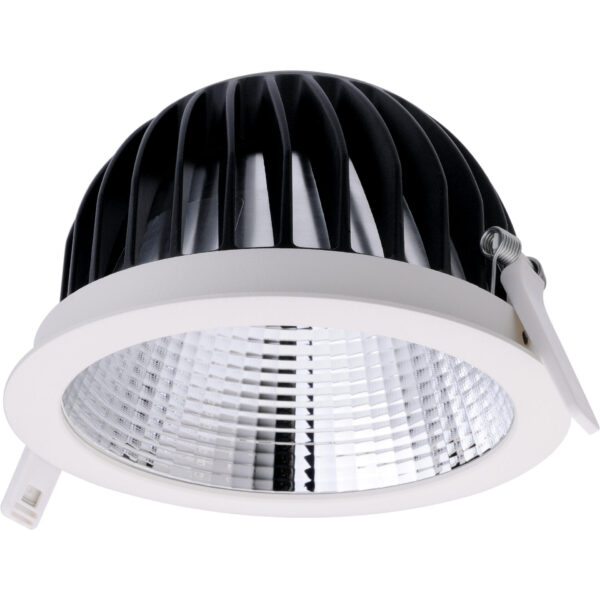

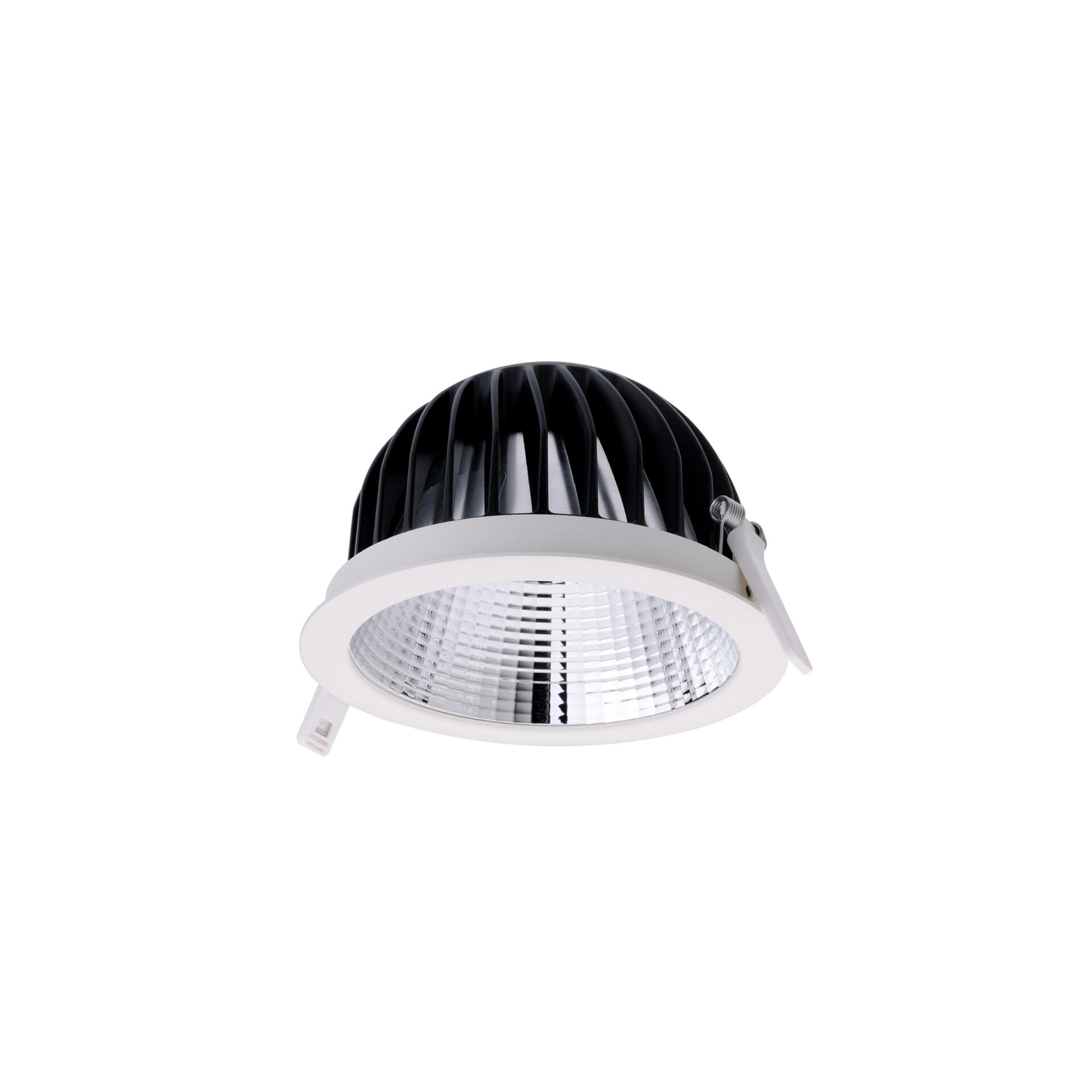

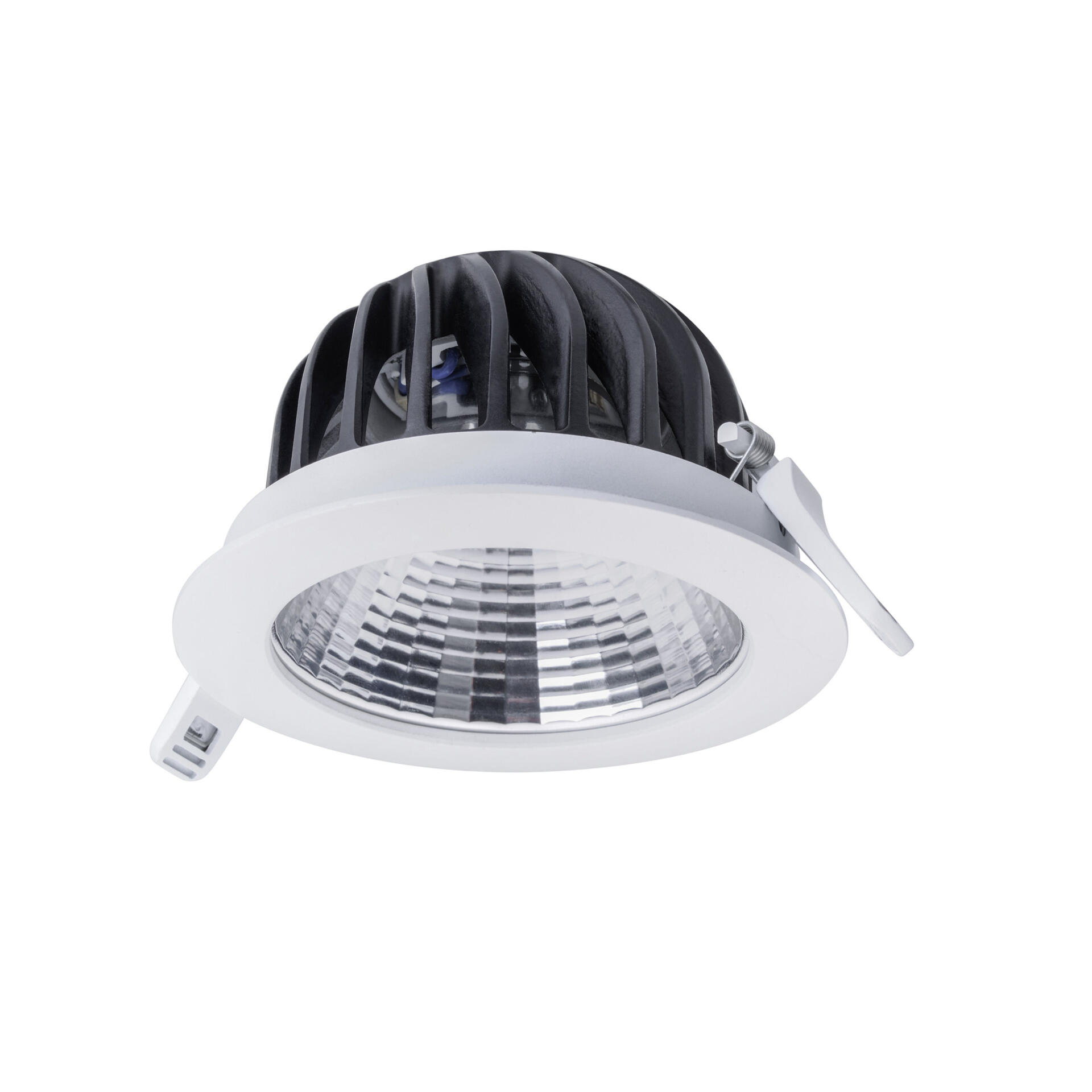

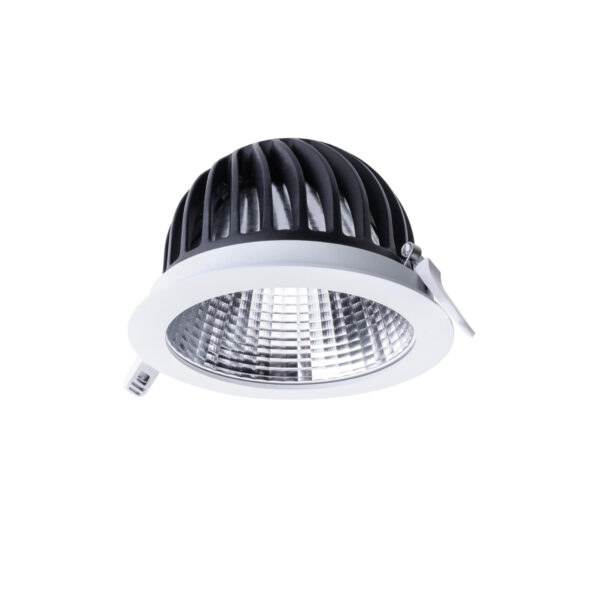

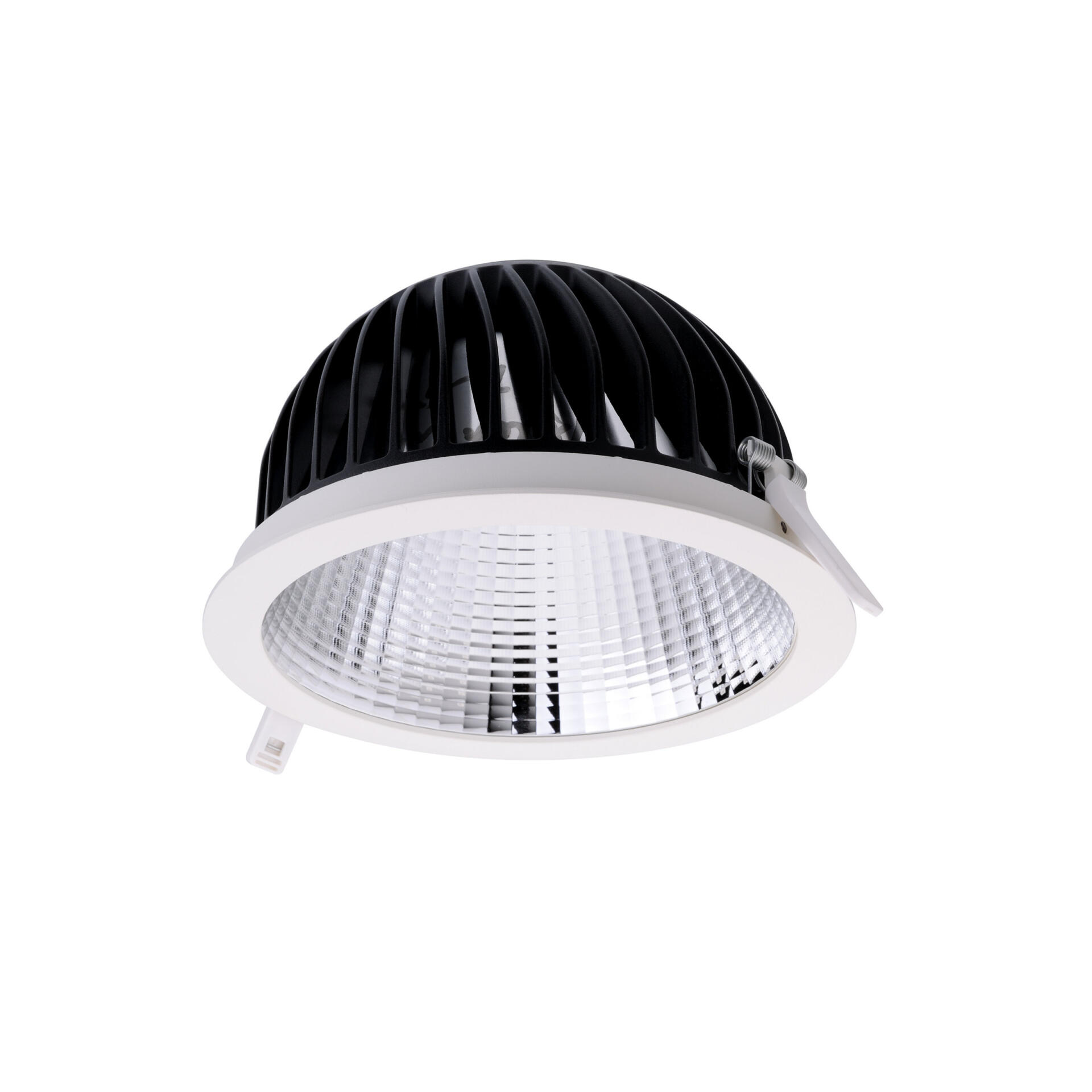

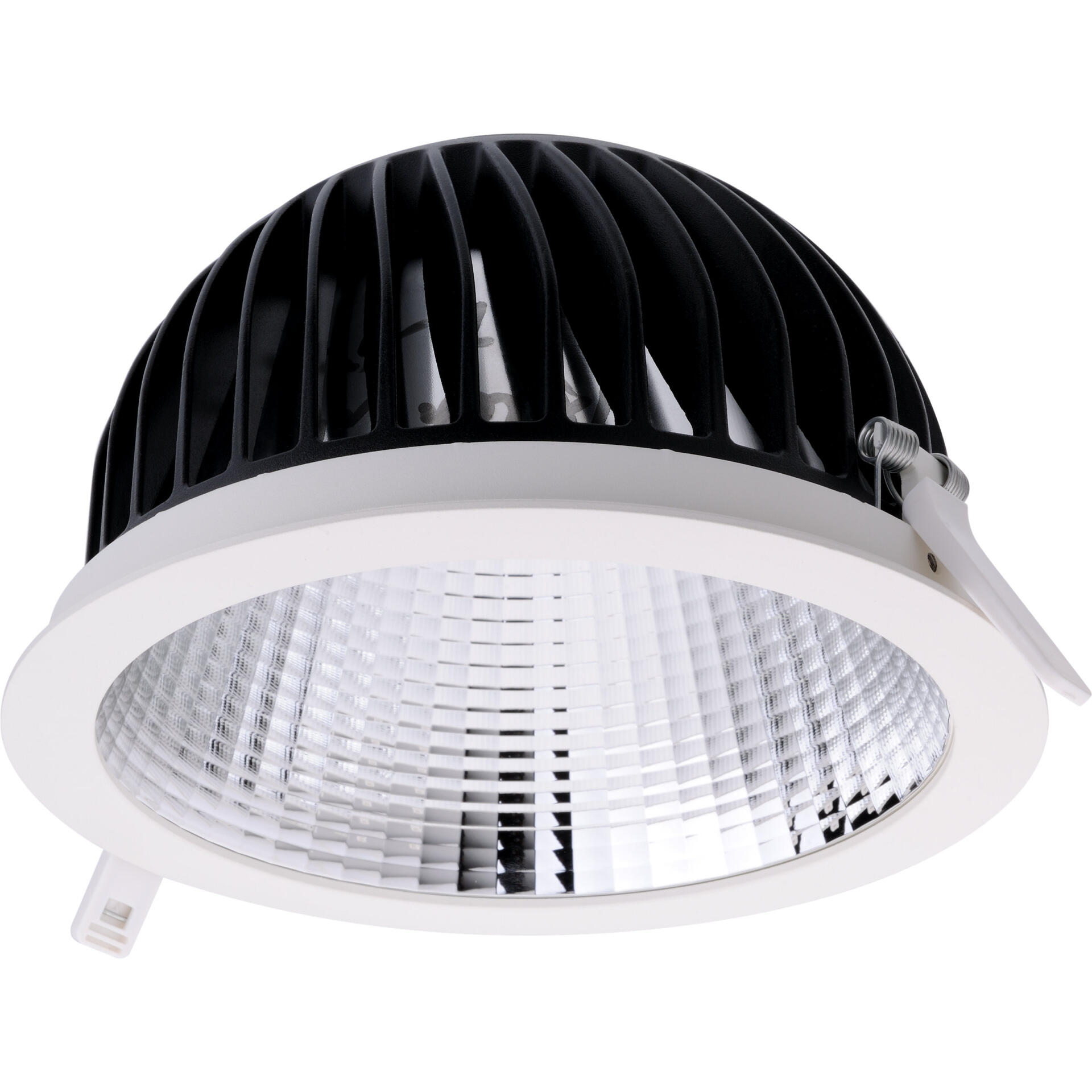

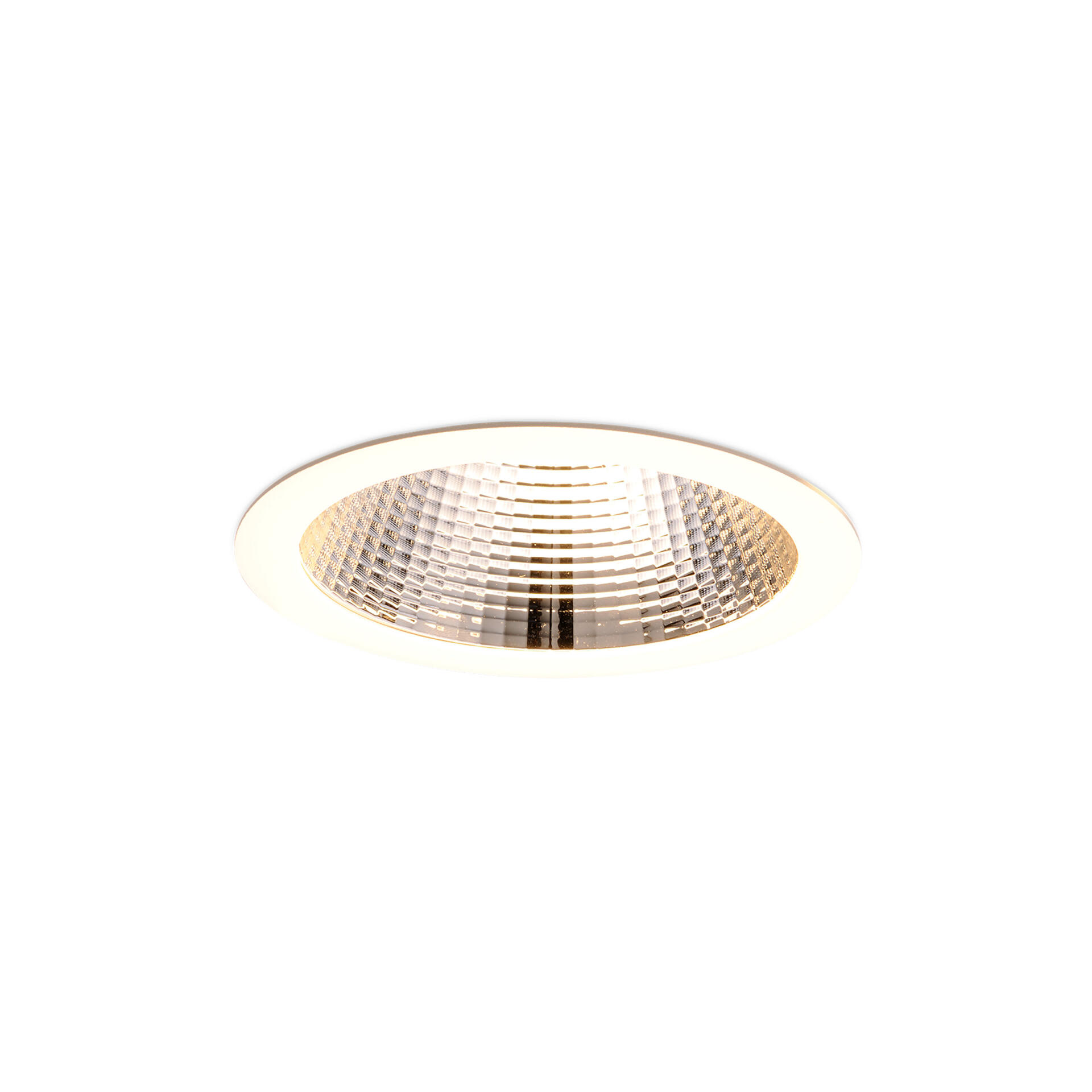

DN58X/DN59X – Philips – LuxSpace G4

LuxSpace Gen4 is the a new LED downlight range combining light comfort and leading performance with luxury looking.

Danh mục:

Mô tả sản phẩm

Mô tả • Đèn Led downlight âm trần
Công suất • 6.6W to 39.7W
Thông số kỹ thuật • Hệ thống Lumen:
– DN588B: 680lm, 710lm, 750lm
– DN589B: 940lm, 1000lm, 1050lm
– DN590B: 1410lm, 1470lm, 1550lm
– DN591B: 1930lm, 2040lm, 2150lm
– DN593B: 3230lm, 3400lm
– DN594B: 4090lm, 4300lm
• Điện áp: 220-240V, 50/60Hz
• CRI>80, IP20/IP54
• Nhiệt độ hoạt động: -20°C < Ta < 40°C
• Tuổi thọ: 50.000 giờ
Điều khiển • ON/OFF, DALI
Nhiệt độ màu • 3000K, 4000K
Phụ kiện –
 LuxSpace G4 DN58x
LuxSpace G4 Fixed output  LuxSpace G4 IP54
 DN590B LED15 840 PSU C D150 WH WB GM  DN590B LED15 830 PSU C D150 WH WB WP GM
 DN591B LED20 830 PSU C D200 WH WB GM  DN590B LED15 840 PSU C D150 WH WB WP GM
 DN591B LED20 840 PSU C D200 WH WB GM  DN591B LED20 830 PSU C D200 WH WB WP GM
 DN593B LED30 830 PSU C D200 WH WB GM  DN591B LED20 840 PSU C D200 WH WB WP GM
 DN593B LED30 840 PSU C D200 WH WB GM  DN593B LED30 840 PSU C D200 WH WB WP GM
 DN594B LED40 830 PSU C D200 WH WB GM  DN594B LED40 840 PSU C D200 WH WB WP GM
 DN594B LED40 840 PSU C D200 WH WB GM
LuxSpace G4 DALI -
 DN588B LED6 840 PSD C D125 WH WB GM  DN588B LED6 840 PSD C D125 WH WB WP GM
 DN589B LED10 830 PSD C D150 WH WB GM  DN589B LED10 830 PSD C D150 WH WB WP GM
 DN589B LED10 840 PSD C D150 WH WB GM  DN589B LED10 840 PSD C D150 WH WB WP GM
 DN590B LED15 840 PSD C D150 WH WB GM  DN590B LED15 840 PSD C D150 WH WB WP GM
 DN591B LED20 830 PSD C D200 WH WB GM  DN591B LED20 830 PSD C D200 WH WB WP GM
 DN591B LED20 840 PSD C D200 WH WB GM  DN591B LED20 840 PSD C D200 WH WB WP GM
 DN593B LED30 840 PSD C D200 WH WB GM  DN593B LED30 840 PSD C D200 WH WB WP GM
 DN594B LED40 840 PSD C D200 WH WB GM  DN594B LED40 840 PSD C D200 WH WB WP GM
